Cañones Trailed cannonCA-C1L

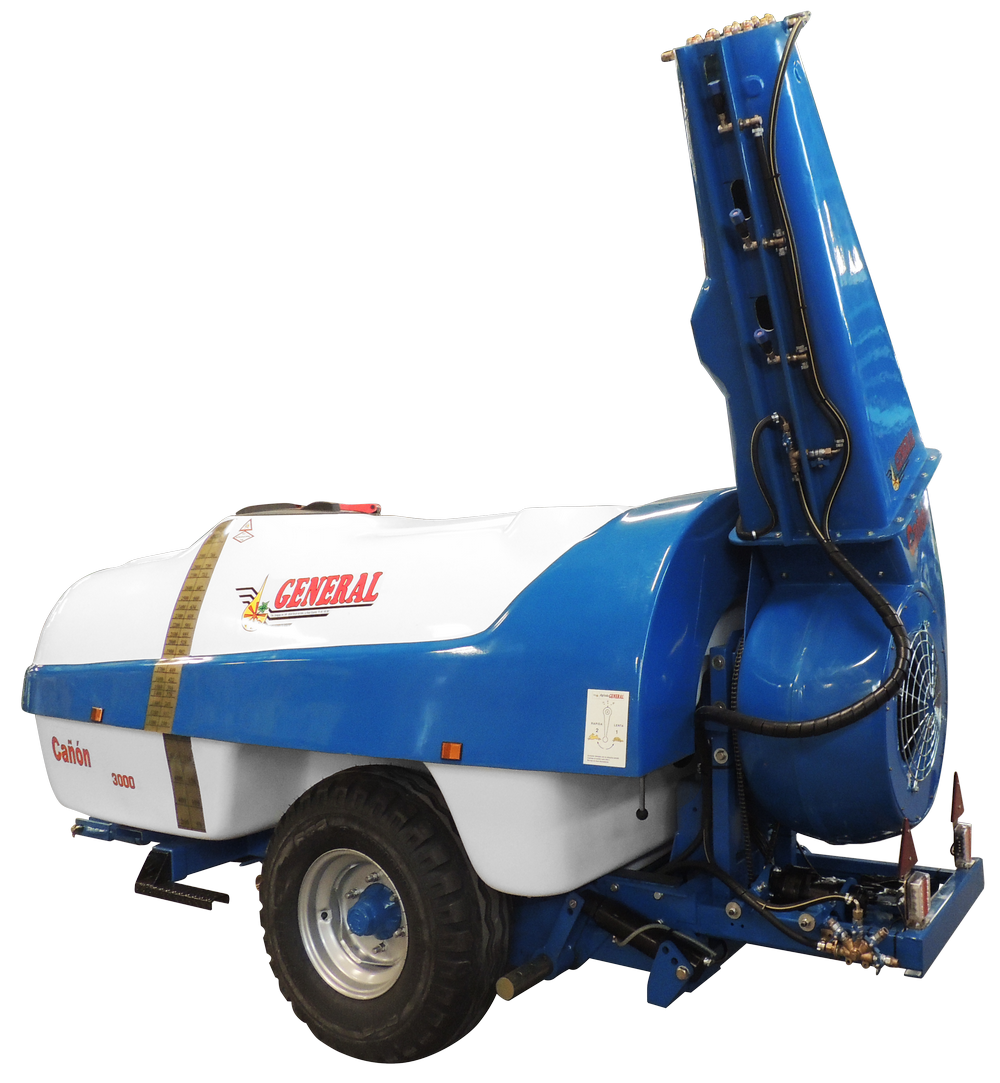

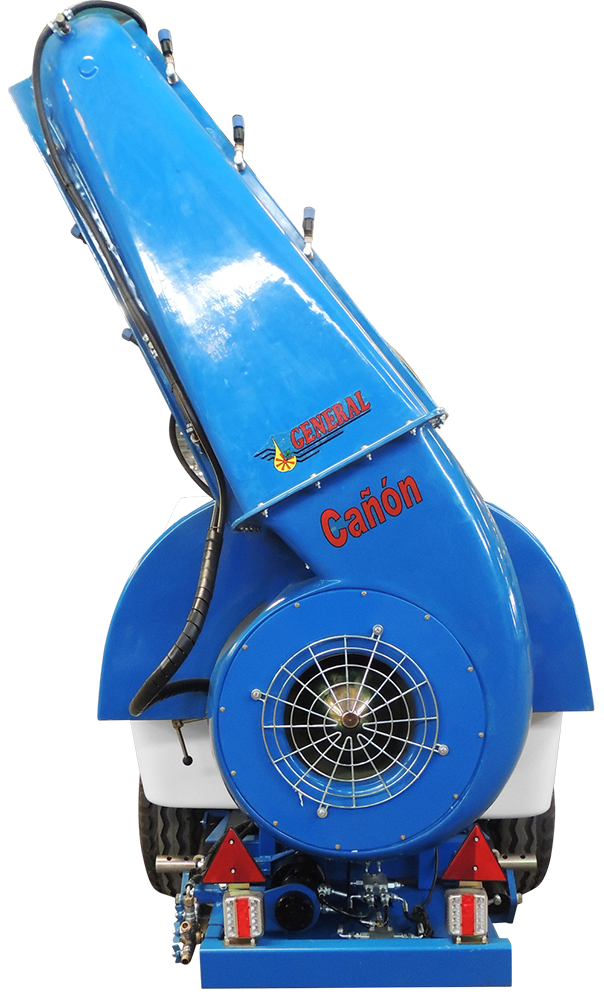

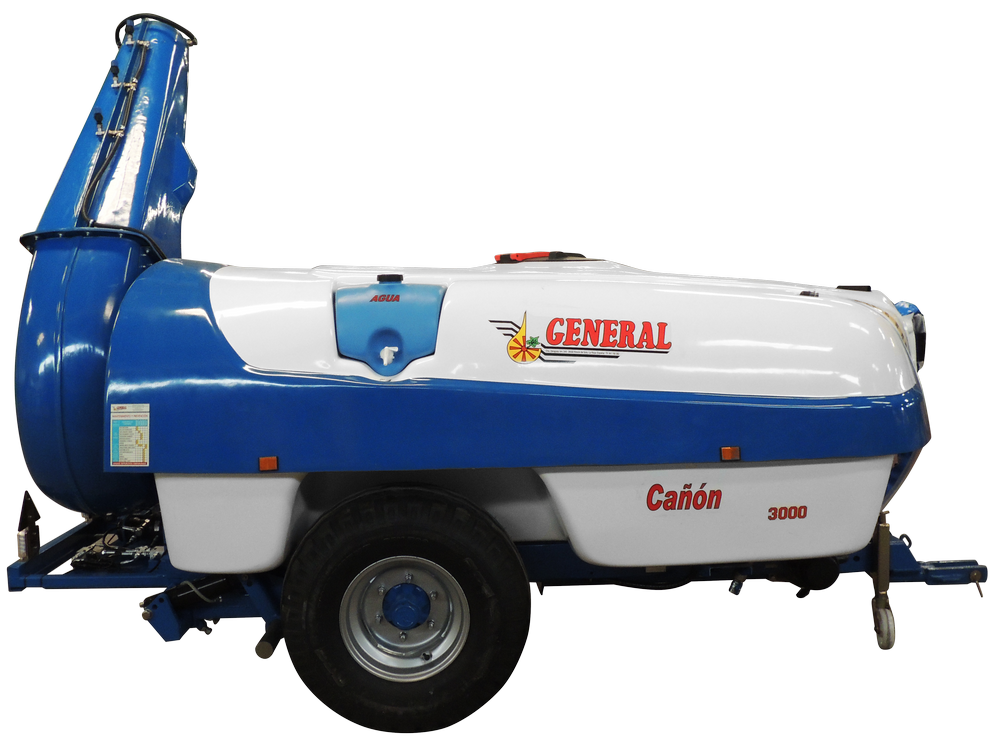

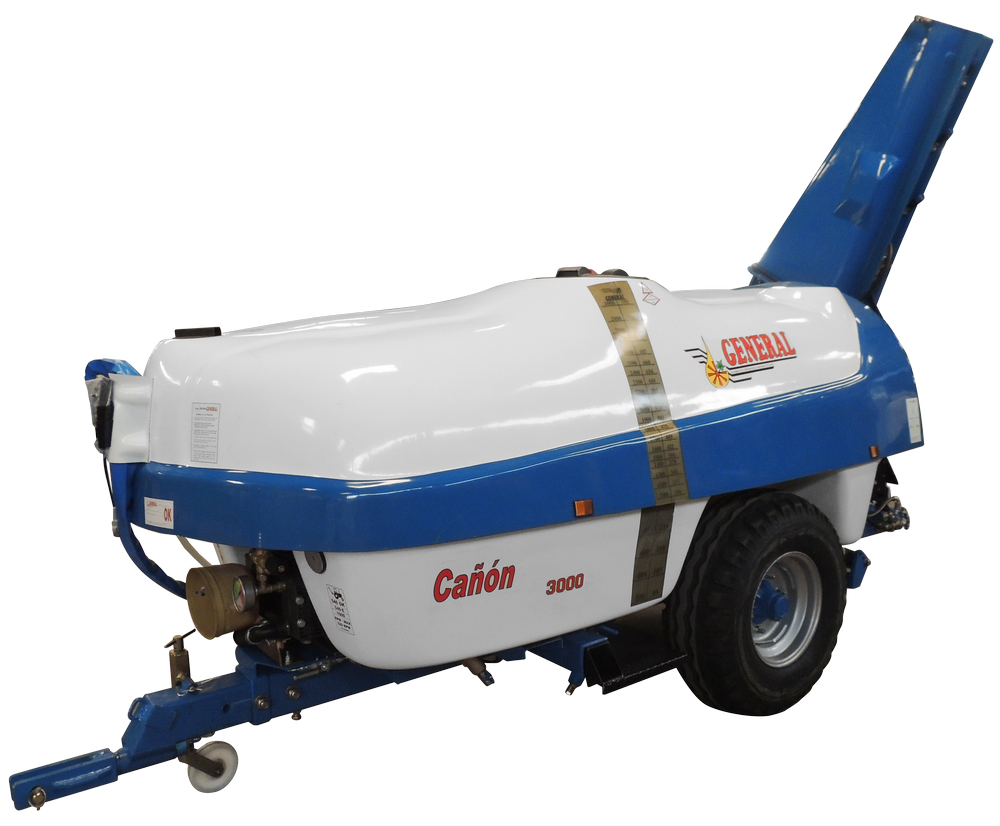

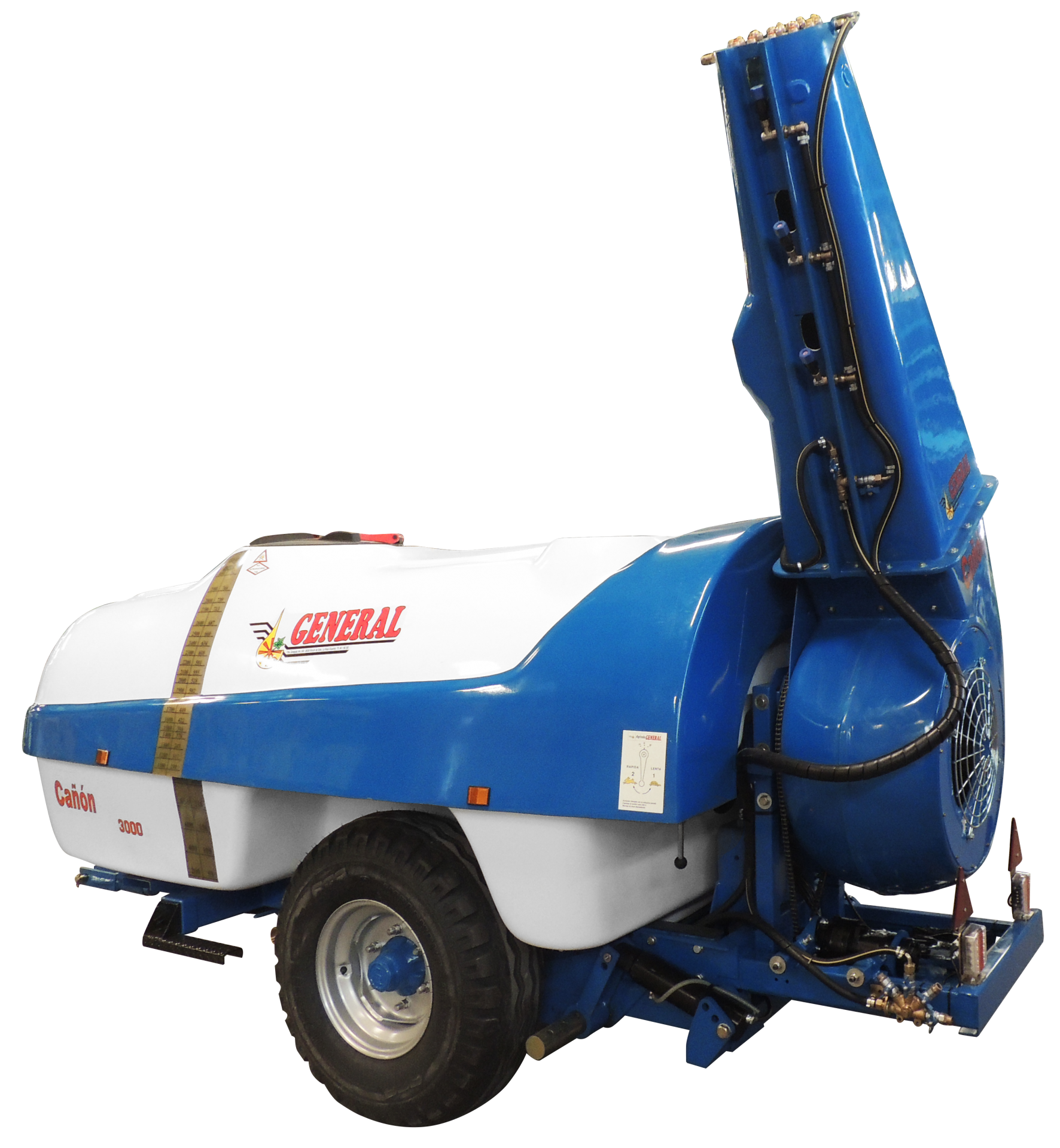

Trailed cannonCA-C1L

Centrifugal trailed cannon, one turbine, one cannon. Special for treatment on one side. Great reach thanks to its double turbine 510Ø.

Characteristics:

• Chassis: Cold laminated steel with detachable rear part support with wheel.
• Main tank: Fiberglass gfrp with tanks. Hand-washer and circuit washer incorporated according to C.E. norm
• Pump: High pressure with ceramic pistons and double cylinder head.
• Multiplying group: Steel box con oil bathed gears two speeds and neutral.
• Controllers: Electrical with 2 sections on the tractor cabin and ergonomic design.
• Filters: In the filling lid, in the pump aspiration and high pressure self-cleaning.
• Turbine: Double Turbine 510Ø.
• Clutch: Centrifugal with brake.
• Turbine box: Reinforced fiberglass gfrp.
• Axle: Reinforced, detachable, adjustable in height and width.
• Tires: Two Tires with implement 11,5 - 80 - 15,3.
• Hook: Reinforced, extensible with ring or fish-mouth.
• Light equipment: Yes, with reflective lights and retro-reflectors according to ce norm.
• Braking system: Double circuit of hydraulic braking from 3000 liters.
• Tractor transmission: Yes, Reinforced with protection according to ce norm.
• Hand-washer and circuit washer: Yes, incorporated in the barrel.
• Maneuvers: Hydraulic orientation and cannon turning with hydraulic engine.
• Lateral stepper: 1 lateral stepper to access the upper part of the tank.

Options:

• Hydraulic orientation of the cannon.
• Orientation and cannon turning with hydraulic engine.
• With length and reach extensor.
• Short cannon.
• Elevation and hydropneumatic suspension on the axle.

*Please contact for other accessories

Cultivos:

• Fruit trees
• Citrus
• Olives Almond Walnut
• Green vegetables
• Green houses
• Cereal
