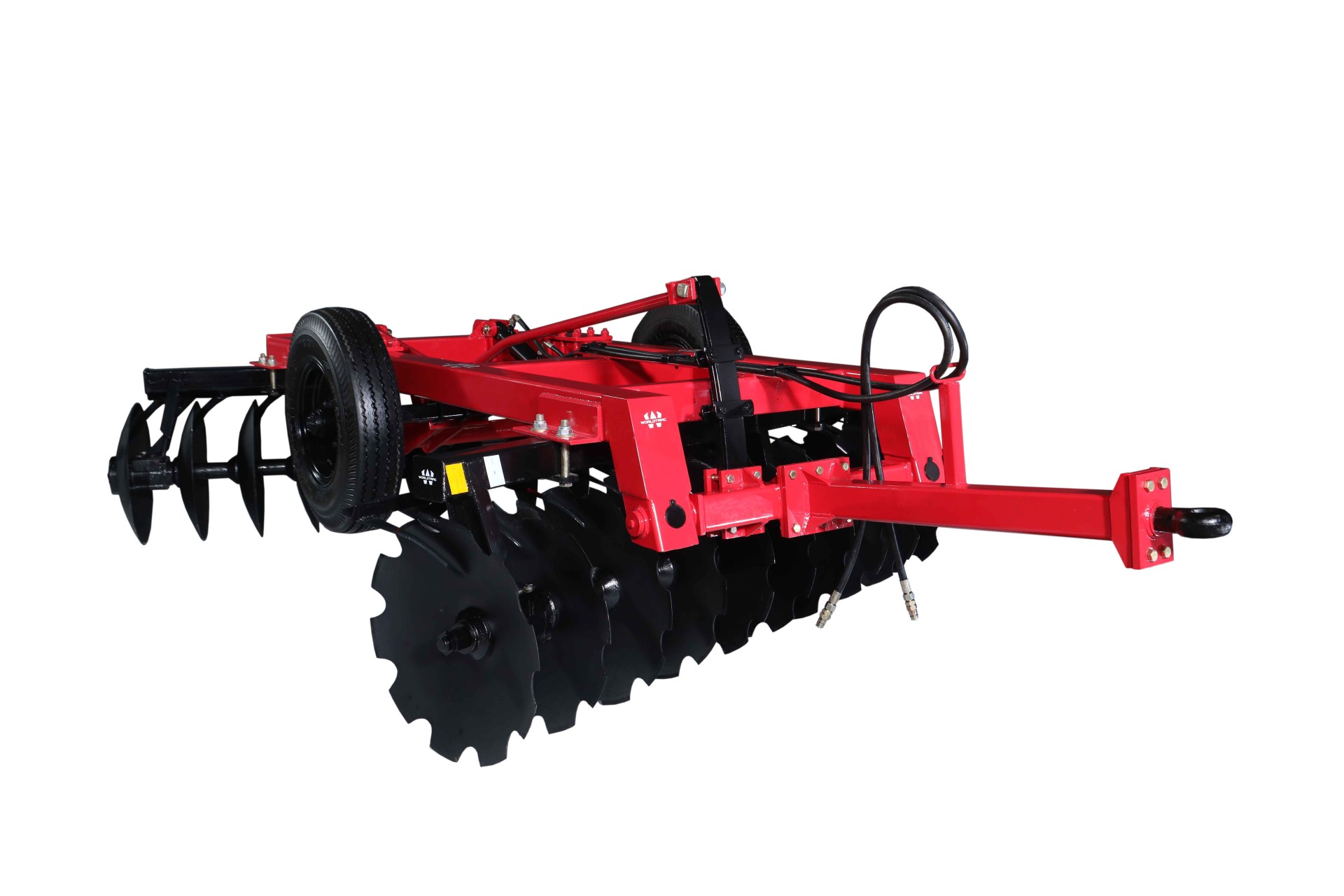

Disc harrows Grada de Discos Hidráulica remolcada
What can you do with this product:
| Trailed Hydraulic Disc Harrow | ||||||
| Model Name | WT-THD-18H | WT-THD-20H | WT-THD-22H | WT-TDH-24H | WT-TDH-28H | WT-TDH-32H |
| No Of Disc | 18 | 20 | 22 | 24 | 28 | 32 |
| Type Of Disc | Front Notched & Rear Plain | |||||
| Disc Diameter (mm) | 610/660 (Optional) | |||||
| Disc Spacing (mm) | 225/250 (Optional) | |||||
| Working Width (mm) | 2075-2100 | 2275-2300 | 2500-2525 | 2700-2725 | 3175-3200 | 3600-3625 |
| Bearing Hubs | 6 | 8 | 8 | 8 | 8 | 12 |
| Gang Rod (mm) | 32/40 (Optional) | |||||
| Tyre Size | 7.50 R16 | |||||
| Depth Control | Hydraulically | |||||
| Mounted | Trailer Hook | |||||
| Weight (Kg. Approx.) | 1130 | 1270 | 1355 | 1400 | 1510 | 1700 |
| Tractor Power (HP) | 50-60 | 60-70 | 70-80 | 80-90 | 90-100 | 100-120 |
