Nebulizer Nebuliser liftmounted Neotwin

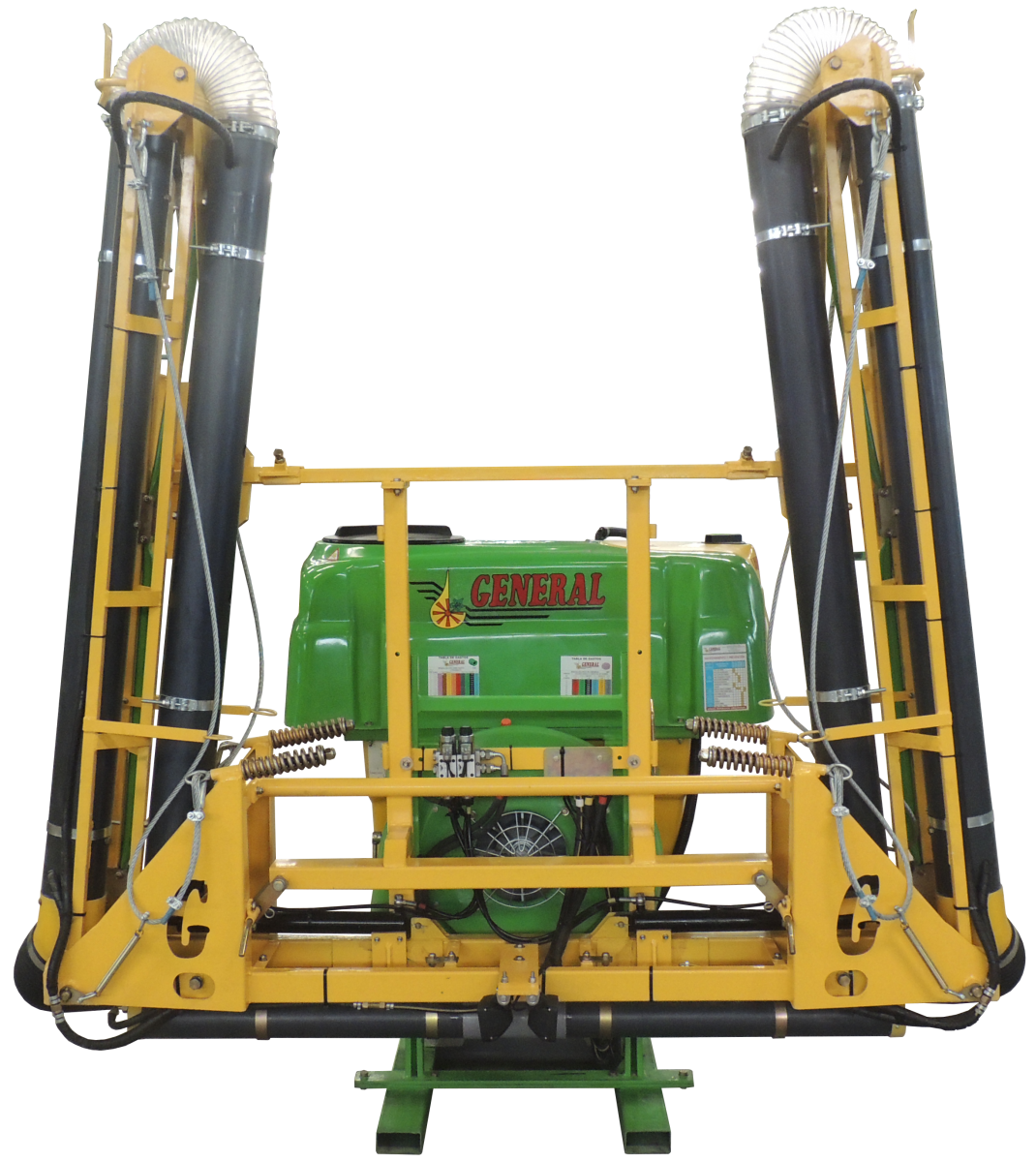

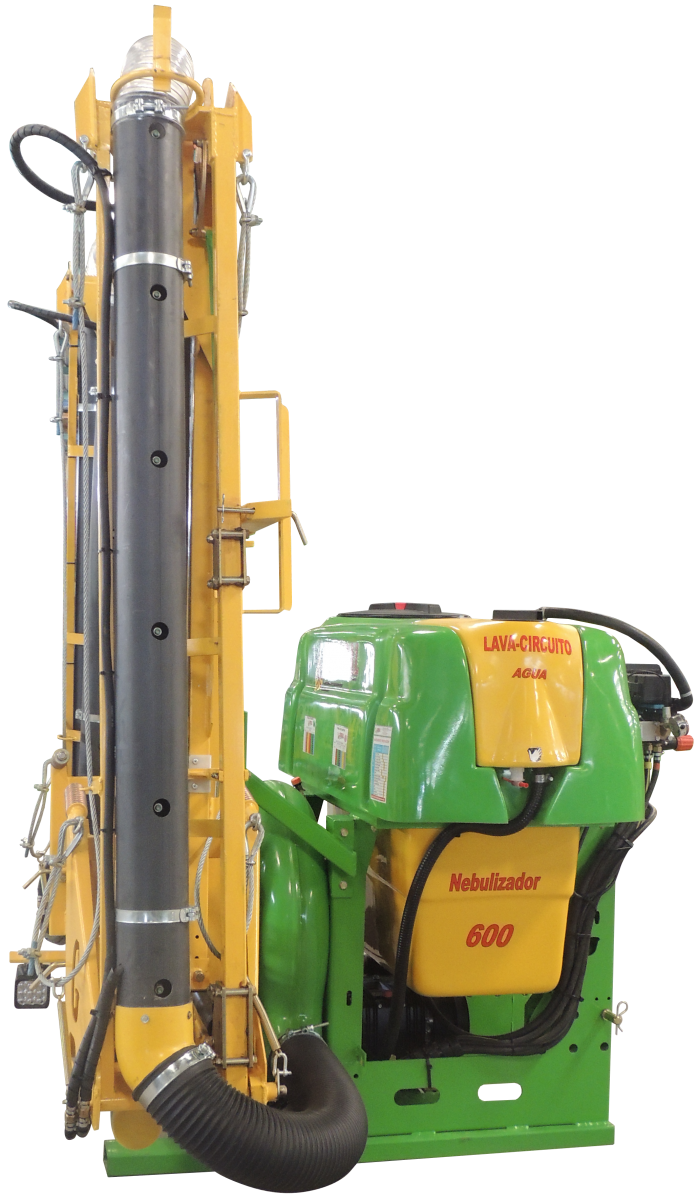

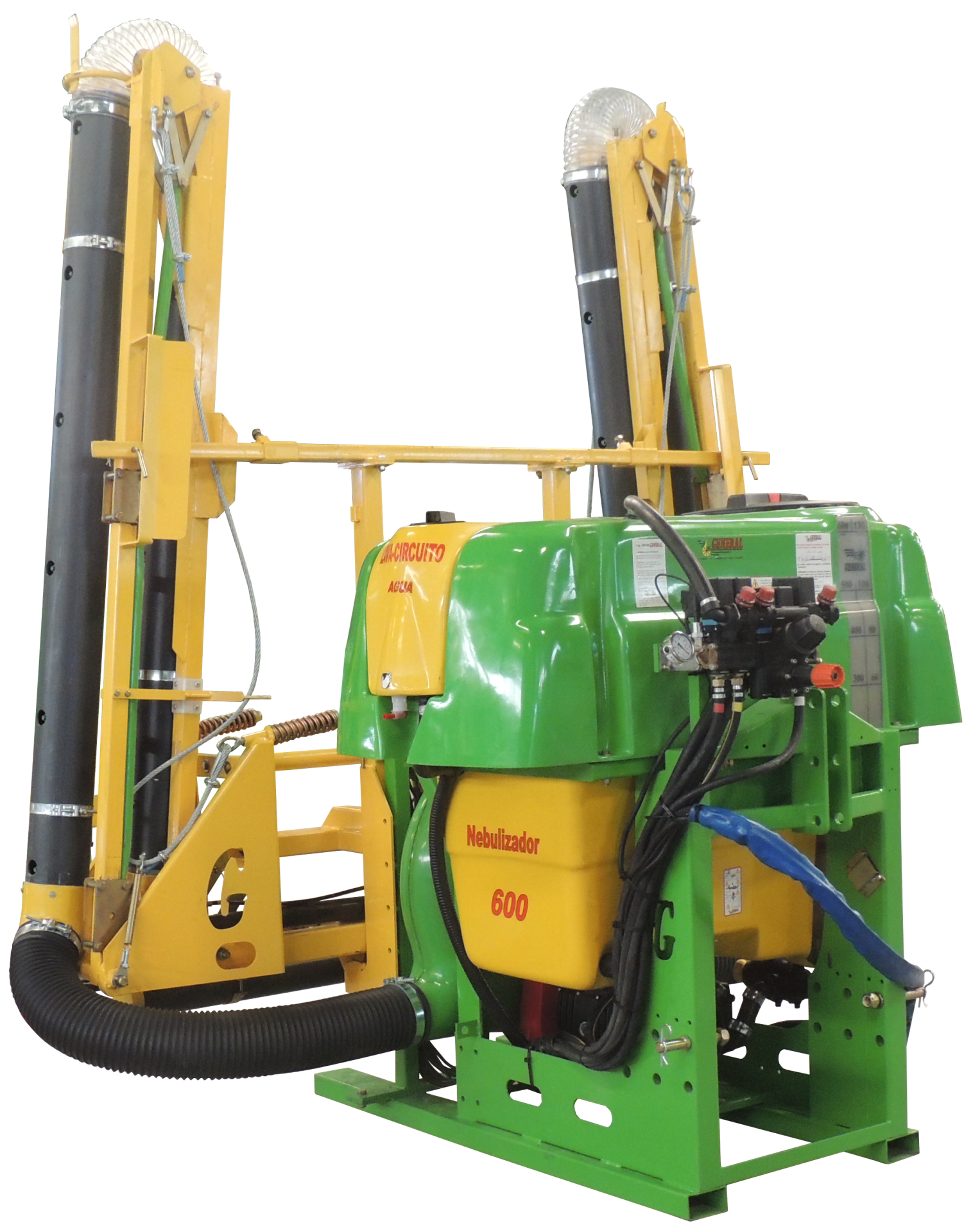

Nebuliser liftmounted Neotwin

This trailed nebuliser has a Neotwin system with air and liquid treatment that removes the vegetation, achieving a better penetration and reducing the liquid consumption. The nebuliser makes the drops smaller and achieves more impacts. It wets more and better with less liquid, its inclined application pulls the leaves from the ground, there is better coverage and it saves liquid. It is designed for green vegetables and low crops. Thanks to its great air power it allows to apply the treatments even in high wind days.

Characteristics:

• Chassis: Reinforced steel with flask hooks and bar support.
• Main tank: Reinforced fiberglass gfrp with hand-washer and circuit washer incorporated according to C.E norm. magnum type.
• Pump: High pressure with ceramic pistons and double cylinder head.
• Multiplying group: Mono-block system, steel box with triple height multiplier, oil bathed gears and lateral change.
• Disconnection: Yes, with gear lever.
• Exit cones: Neotwin system tubes
• Controllers: Electric volumetric 5-ways digital with pressure regulation.
• Filters: In the filling lid, in the aspiration of the pump and high pressure self-cleaning.
• Turbine: Axial of aluminum with clutch 520Ø.
• Clutch: Centrifugal with brake.
• Turbine box: Reinforced fiberglass gfrp V2.
• Disposition: Complete coverage with air and liquid.
• Tractor transmission: Yes, Reinforced with protection according to ce norm.
• Hand-washer and circuit washer: Yes, incorporated in the barrel.
• Arms: Hydraulic bars of14 meters.
• Folding: Yes, hydraulic upwards independent.
• Up and down bars: Manual (Optional hydraulic).

Technical information:

Options:

• Product filler 15 liters polyester.
• Super product dispenser 30 liters.
• Hydraulic up and down of the bars.
• Hydraulic lock in the bars.
• With polyethylene tank.

*Please contact for other accessories

Cultivos:

• Green vegetables
• Green houses
• Cereal

Tecnologías:

• Neotwin system
